Product Description:

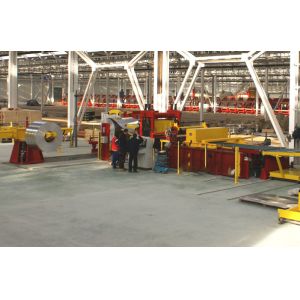

The FX-(0.6-4)*1500mm Cut To Length Line Machine (CTL) is
controlled by a PLC system that is easy to operate and allows for
precise cutting. The CTL can be programmed to cut the GI, PPGI
sheets to the desired length and width, with high accuracy and
consistency. The PLC system also allows for easy maintenance and
troubleshooting, reducing downtime and increasing productivity.
Features:
- High precision
- Flexibility, allowing for versatility in production
- High-speed and efficient production
- Customizable cutting lengths
- Good and reliable quality control
- Material savings, reducing scrap and optimizing material costs
- Increased productivity
- Safety features to protect operators and prevent accidents
Technical Parameters:
| Model No. | FX 0.4-4×1500mm |
| Material | GI, PPGI |
| Material thickness | 0.4-4mm |
| Material width | 300-1500mm |
| Coil I.D. | Φ480-520mm |
| Coil O.D. | Φ900-1800mm |
| Stacking length range | 500-4000mm |
| Cutting length accuracy | ±0.3mm/m |
| Leveling roller | 4-hi, Φ85 |
| Leveling accuracy | ±1mm/m2 |
| Cutting speed | 0-80m/min., adjustable |
| Weight | max. 20T |
Note: The above parameters are for reference only, customized is
accepted.
Process Flow:
The following process flow of FX-(0.6-4)*1500mm Cut To Length Line Machine (CTL) is for reference only. It will be designed as per customer's
demands and requirements.
V-shaped material preparation platform - loading coil car -
discharging rack - decoiler - 4-hi precision flatting machine -
storage pit - correction device - sizing mechanism - high-speed
pneumatic shearing machine - conveying platform - pneumatic
stacking table - hydraulic lifting platform - horizontal discharge
coil car
Applications:
The FX-(0.6-4)*1500mm Cut To Length Line Machine (CTL) is widely used in various industries that require precise cutting
and processing of thin metal sheets. Some of the application occasions and scenarios where the Light
Gauge Cut To Length Line product can be used include:
- Manufacturing plants that need to cut coils into flat sheets for
further processing
- Metalworking shops that require precision cutting for their
products
- Construction companies that need flat sheets of metal for their
projects
- Automotive manufacturers that require precision metal cutting for
their products
Support and Services:
Our FX-(0.6-4)*1500mm Cut To Length Line Machine (CTL) comes with comprehensive technical support and services to ensure
optimal performance and minimal downtime. Our team of experienced
technicians and engineers offer the following support and services:
- Installation and commissioning
- Operator training
- Regular maintenance and servicing
- Upgrades and retrofits
- Remote troubleshooting and diagnostics
- On-site repairs and spare parts replacement
We are committed to providing our customers with the highest level
of support and services to maximize the productivity and efficiency
of their Light Gauge Cut To Length Line.
Packing and Shipping:
Product Packaging:
- The FX-(0.6-4)*1500mm Cut To Length Line Machine (CTL) will be securely packaged in a wooden crate to prevent any damage
during transportation.
- The crate will be labeled with the product name, dimensions, and
handling instructions for easy identification and handling.
Shipping:
- We offer worldwide shipping for the Cut To Length Line product.
- The shipping cost will be calculated based on the destination and
the weight of the product.
- We use reputable shipping carriers to ensure prompt and safe
delivery of the product.
- Customers will receive a tracking number to monitor the progress of
their shipment.
FAQ:
1. What is the primary function of the FX-(0.6-4)*1500mm Cut To
Length Line Machine (CTL)?
The primary function of the FX-(0.6-4)*1500mm Cut To Length Line Machine (CTL) is to cut large coils into flat sheets of specified lengths, with a
maximum cutting length of 3000mm. This process includes de-coiling,
leveling, measuring, shearing, and stacking the material for
further use in various applications.
2. What types of materials can the FX-(0.6-4)*1500mm Cut To Length Line Machine (CTL) process?
This production line is designed to handle a variety of materials,
including:
- Hot Rolled Carbon Steel
- Cold Rolled Steel
- Galvanized Steel
- Pre-Painted Steel
- Stainless Steel
- Aluminum
3. What are the specifications of the FX-(0.6-4)*1500mm Cut To Length Line Machine (CTL)?
Key specifications of the Cut To Length Production Line include:
- Thickness: 0.6-4mm
- Width Capacity: Up to 1500mm
- Coil Weight: Up to 20 tons
- Coil Inner Diameter: 450 mm to 800 mm
4. How fast can the FX-(0.6-4)*1500mm Cut To Length Line Machine (CTL) operate?
The production line can achieve cutting speeds of up to 80 meters
per minute, significantly enhancing productivity and reducing lead
times.
5. What is the cut tolerance of the FX-(0.6-4)*1500mm Cut To Length
Line Machine (CTL)?
The cut tolerance for this production line is less than ±0.5 mm,
ensuring high precision and quality in the final products.
